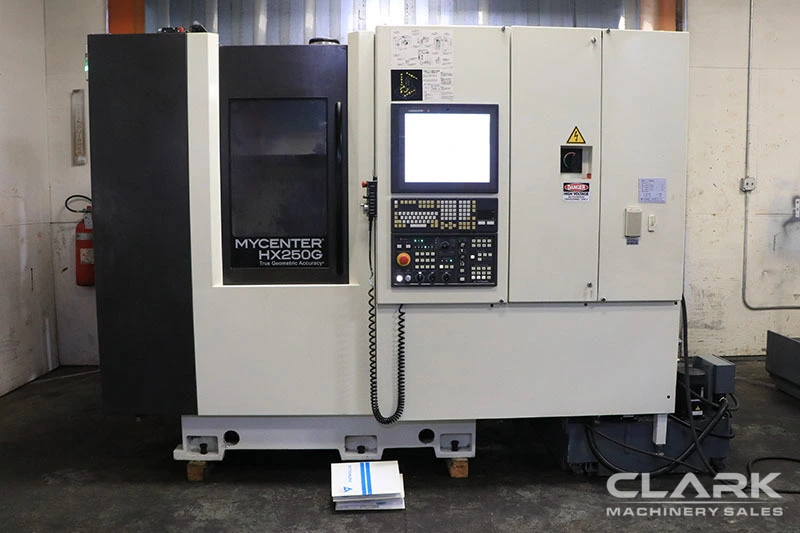

2013 KITAMURA MYCENTER HX250G
Horizontal Machining Centers
Kitamura Arumatik-MI 4-Axis CNC Control, Full 4th Axis, Through Spindle Coolant. This Kitamura MyCenter HX250G horizontal machining center is available immediately.
| PALLET WIDTH | 10" |
| PALLET LENGTH | 10" |
| PALLET INDEXING | FULL 4TH |
| NUMBER OF PALLETS | 2 |
| X-AXIS TRAVEL | 12" |
| Y-AXIS TRAVEL | 12" |
| Z-AXIS TRAVEL | 13" |
| SPINDLE SPEED | 15,000 RPM |
| SPINDLE MOTOR | 15 hp |
| SPINDLE TAPER | BT 30 |
| TOOL POSITIONS (ATC) | 40 |
| RAPID TRAVERSE RATE | 2,362 in/min. |
| CUTTING FEEDRATE | 2,362 in/min. |
| Dimensions | 111.5" X 116.1" X 89.9" |
| Weight | 12,000 LBS |
KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL
FULL 4TH AXIS
THROUGH SPINDLE COOLANT (220 PSI)
CHIP CONVEYOR
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** MIST COLLECTOR IN PICTURE NOT SOLD WITH MACHINE
