2019 METHODS MV 1600H
Vertical Machining Centers

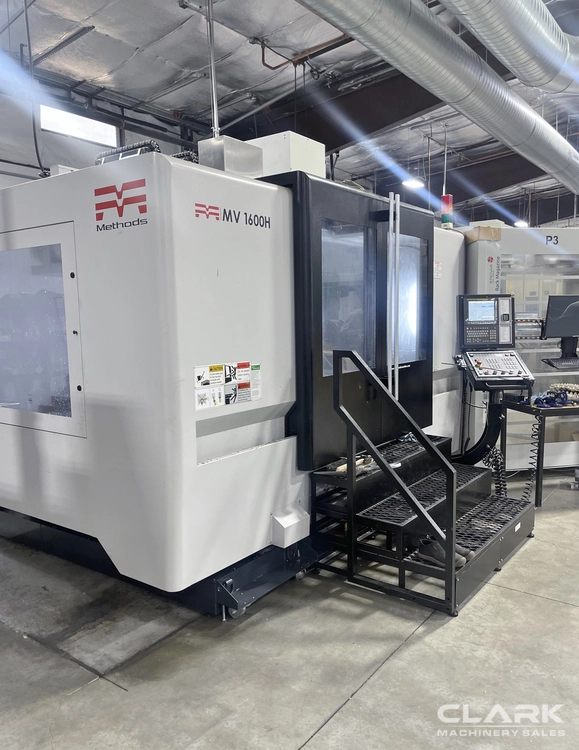

Installed new in 2021. 63" x 35" x 31.5" Travels, Fanuc 0i-MF Control, 15,000 RPM Spindle, CAT40 Big Plus Taper, 40 Position Tool Changer, Renishaw Probing System, Through-Spindle Coolant Prep, 4th Axis Pre-Wire, only 2,500 Cutting Hours. This 2019 Methods MV 1600H cnc vertical machining center is in plant, under power and available immediately.
| TABLE LENGTH | 66.9" |
| TABLE WIDTH | 33.5" |
| TABLE CAPACITY | 3,307 lb |
| X-AXIS TRAVEL | 63" |
| Y-AXIS TRAVEL | 35.4" |
| Z-AXIS TRAVEL | 31.5" |
| SPINDLE SPEED | 15,000 RPM |
| SPINDLE MOTOR | 30 hp |
| SPINDLE TAPER | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 40 |
| RAPID TRAVERSE - X/Y AXIS | 1,417 in/min. |
| RAPID TRAVERSE - Z-AXIS | 944 in/min. |
FANUC 0i-MF CONTROL
15,000 RPM SPINDLE (CAT40 BIG PLUS)
40-POSITION TOOL CHANGER
RENISHAW PROBING SYSTEM
PRE-WIRED FOR 4TH AXIS (DOES NOT INCLUDE DRIVES OR MOTORS)
PREPPED FOR 1,000 PSI THROUGH-SPINDLE COOLANT
MIST BUSTER MIST COLLECTOR (MB2000)
SPINDLE CHILLER
(2) CHIP CONVEYORS (REAR DISCHARGE)
THERMAL COMPENSATION
REMOTE JOG HANDLE
RIGID TAPPING
DATA SERVER
ETHERNET
USB
LINEAR GUIDES (X & Y AXES)
BOX WAY (Z AXIS)
** AS OF FEBRUARY 2024, CUTTING TIME – 2,569 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $265,000
** MACHINE WAS INSTALLED NEW IN 2021 (BUILT IN 2019)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** EROWA SYSTEM SHOWN IN PHOTOS IS NOT INCLUDED WITH THE MACHINE
