2018 OKUMA MB-4000H
Horizontal Machining Centers.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Installed 2019! Only 4,112 cutting hours! Get your hands on this 2018 Okuma MB-4000H Horizontal Machining Center. Its specifications include a 2-pallet system with a pallet width and length of 15.75", X/Y/Z axis travel of 22"/22"/24.6", spindle speed of 15,000 RPM, and a 40 hp spindle motor. The machine can accommodate a total of 64 tool positions. It's equipped with an OSP P300MA CNC control, a dual belt ConSep 2000 chip conveyor, an MP Systems 1000 PSI coolant system, a Renishaw OMP 400 Probing, a Losma Icarus mist collector, and a transformer. It has had only one owner and was installed in 2019. It remains in plant, powered up, and ready for immediate purchase.
| PALLET WIDTH | 15.75" |
| PALLET LENGTH | 15.75" |
| PALLET INDEXING | 1 DEGREE |
| NUMBER OF PALLETS | 2 |
| X-AXIS TRAVEL | 22" |
| Y-AXIS TRAVEL | 22" |
| Z-AXIS TRAVEL | 24.6" |
| SPINDLE SPEED | 15,000 RPM |
| SPINDLE MOTOR | 40 hp |
| SPINDLE TAPER | CAT 40 |
| TOOL POSITIONS (ATC) | 64 |
| Dimensions | 185"L x 96"W x 106"H |
| Weight | 20,900 lbs |

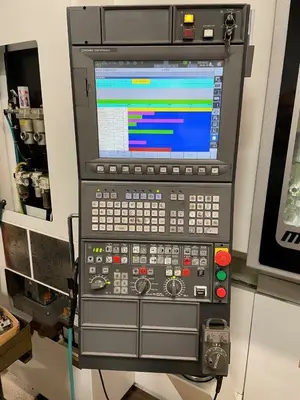

OSP P300MA CNC CONTROL

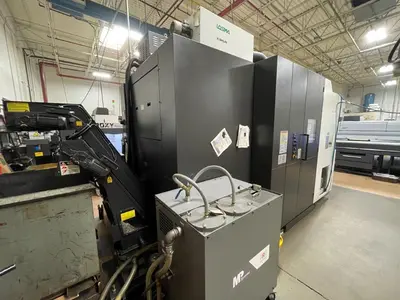

DUAL BELT CONSEP 2000 CHIP CONVEYOR
COOLANT THRU SPINDLE
MP SYSTEMS COOLANT SYSTEM (1,000 PSI)
RENISHAW OMP 400 PROBING
LOSMA ICARUS MIST COLLECTOR
TRANSFORMER
** ORIGINAL OWNER
** MACHINE INSTALLED 2019
** MACHINE CUTTING PRIMARILY ALUMINUM
** AS OF SEPTEMBER, 2023 - CUTTING TIME: 4,112 HOURS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
