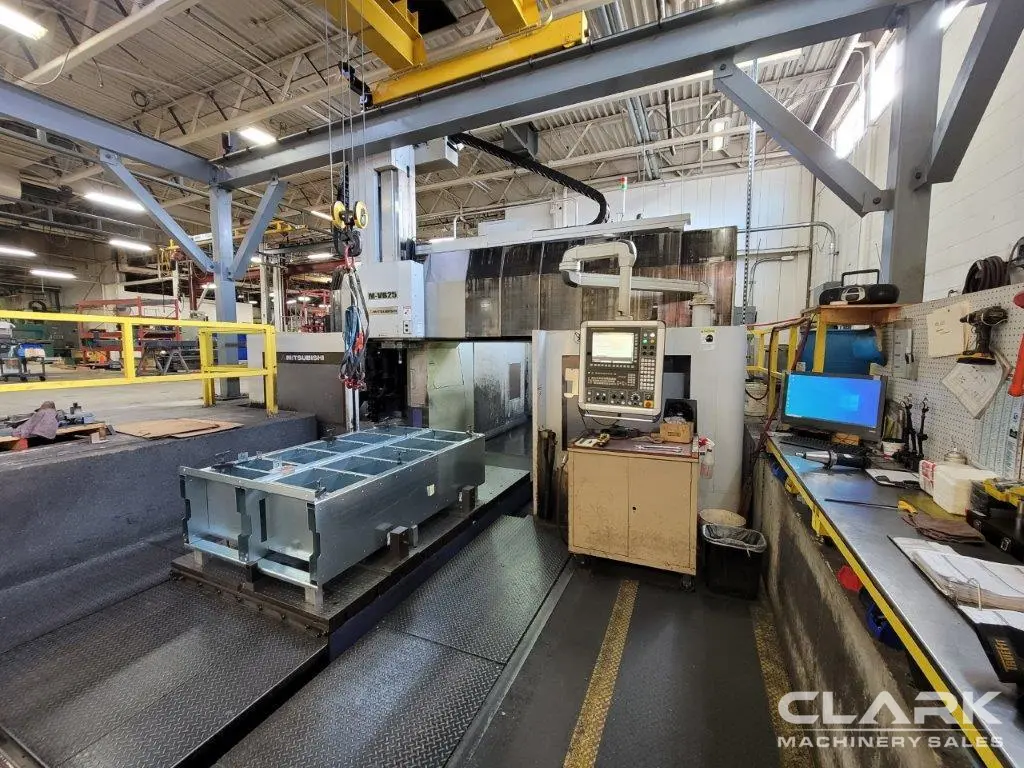

2015 MITSUBISHI M-VF25-5F
Vertical Machining Centers
2015 MITSUBISHI M-VB25-5F Vertical Machining Center: 125" x 98" x 39" travels. Robust 26,400 lb table, high-capacity auto tool changer, FANUC control, & chip conveyor. Essential for heavy-duty machining.
| TABLE LENGTH | 118.11" |
| TABLE WIDTH | 59.05" |
| TABLE CAPACITY | 26,400 lb |
| X-AXIS TRAVEL | 125.98" |
| Y-AXIS TRAVEL | 98.42" |
| Z-AXIS TRAVEL | 39.37" |
| DISTANCE BETWEEN COLUMNS | 80.7" |
| DISTANCE FROM WORK FACE TO SPINDLE | 47.24" |
| RAM SIZE | 13.7715 |
| SPINDLE SPEED | 6,000 RPM |
| SPINDLE MOTOR | 40 hp |
| SPINDLE TAPER | CAT 50 |
| DIAMETER OF SPINDLE | 4.33" |
| TOOL CAPACITY (ATC) | 60 |
| APPROX MACHINE WEIGHT | 81,510 lb |
FANUC 31IB CNC CONTROL
THROUGH SPINDLE COOLANT (HIGH PRESSURE)
60 STATION AUTOMATIC TOOL CHANGER
AUTOMATIC ATTACHMENT CHANGER
RIGHT ANGLE HEAD (1 DEG)
CHIP CONVEYOR
FIXED RAIL DESIGN
IN PLANT, UNDER POWER - AVAILABLE IMMEDIATELY.
